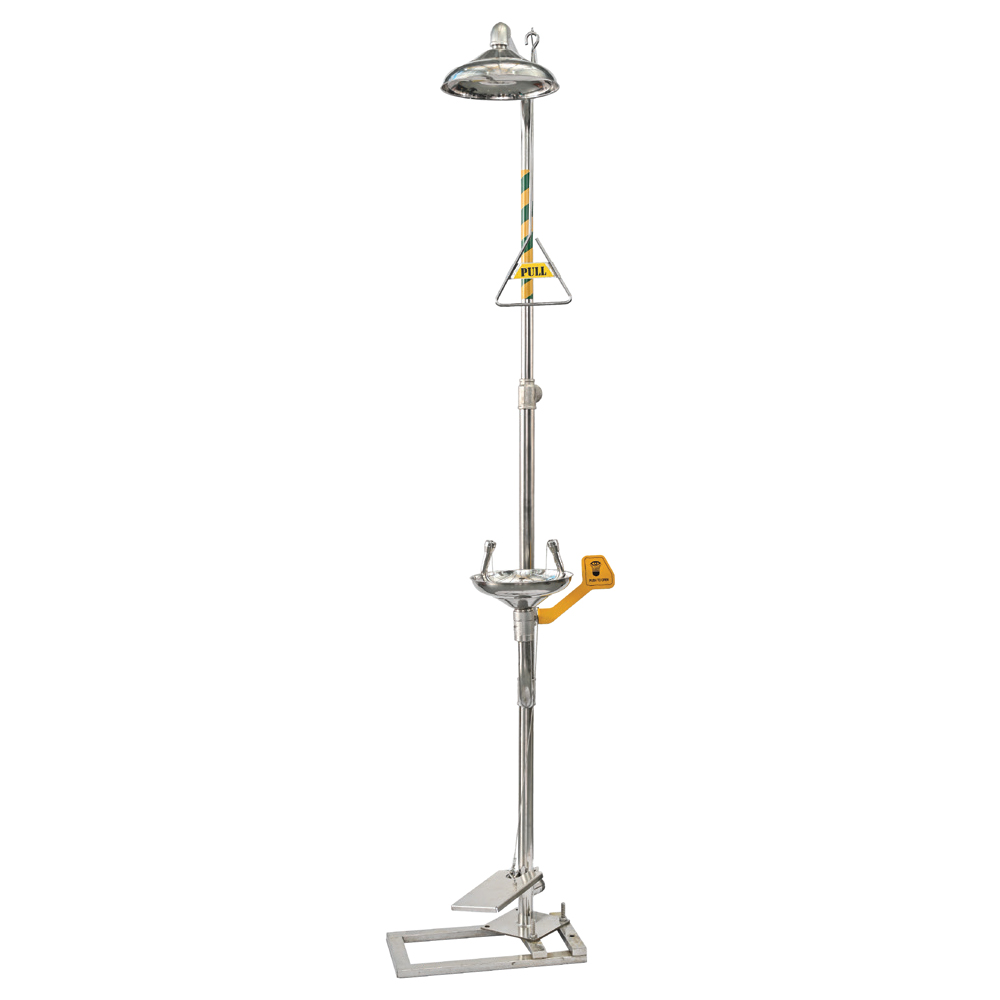

6250 SS(SW)

STANDARD: IS 10592:2018, ANSI Z358.1

• Water inlet connections of 1-1/4” NB
• Water outlet connection – 1¼” NB
• Head shower discharge rate – 76 lpm (Minimum)
• Eye wash discharge rate – 12 lpm. (Minimum)
• Push plate for one hand operation
• Push to open valve – connects unit to uninterruptible water supply
• Base plate – to hold the shower structure in a stable position (Size – 180 mm)
• Newly introduced straight model body for better flow of water in minimum time
• With foot pedal for hands free operation to supply and control water flow through eye wash heads
• Welded base flange and drain outlet introduced for easy installation.
• Square base flange for better positioning on ground surface.
• External 1-1/4” BSP thread of drain outlet introduced.
